CSGW-GCX28 Gravel bike wheels carbon clincher wheels

Gravel bike wheels

Category： Gravel/CX Frame/Wheels/RimTime:2016-10-18Click:5655

Specifications

Size	700C
Type	Clincher&tubeless
Rim Material	T700 toray carbon&Ti
Rim Depth/Width	28/29mm
Weave	3K/UD/18K
Finish	Glossy/matt/painting
Available Hub	Novatec D791/D792 hubs 28/28H or 32/32H for QR or 15/142
Available Spokes	Sapim Cx-Ray/Race spokes
Nipples	SILF nipples
ERD	589mm
Max tire	40mm

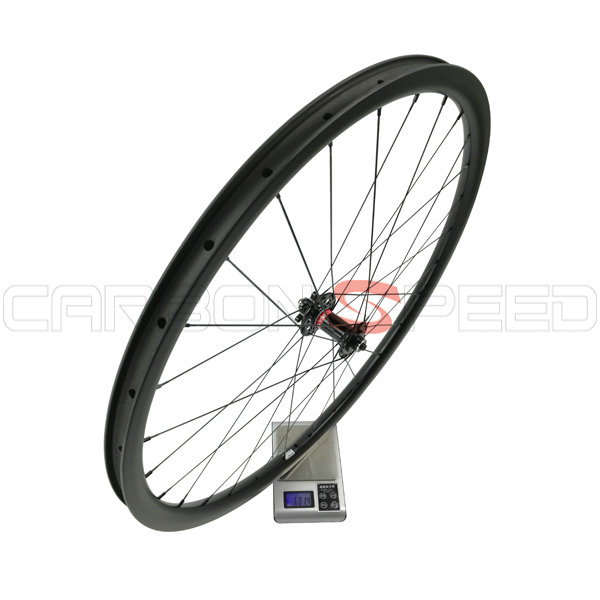

Picture Model	NSS-GCX28 (Novatec D791/D792 hubs 28/28H for QR , Cx-ray spokes/nipples) 1502g

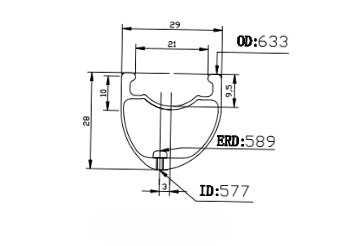

Geometry

Detailed Pictures

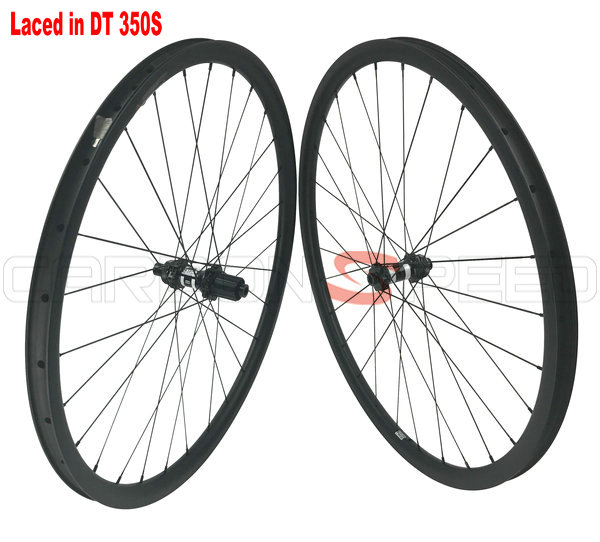

GCX28 Rim Laced in other hub:

DSS-GCX28-1480g(Centerlock Straight Pull, F12/R12)

KeyWords：Gravel bike wheels
