CS-GR029 Gravel bike frameset for 100*15mm/135mm QR/142*12mm axle
Gravel bike frameset
Category： Gravel/CX Frame/Wheels/RimTime:2016-12-09Click:12857
Specifications
|
Model |
CS-GR029 |
|
Material |
toray carbon fiber |
|
Headtube |
1-1/8”-1-1/2” |
|
Seatpost |
27.2mm seatpost |
|
Size |
49/52/54/56/58cm |
| Fork Rake | 45mm |
|
BB System |
BSA/BB30(68mm) |
|
Weave |
UD |
|
Chainstay |
425mm |
|
brake type |
Flat mount |
|
Front/Rear space |
front 100x15mm/rear 135mm QR/142x12 axle |
|
Include |
Frame/fork |
| Max tire | 700*40C |

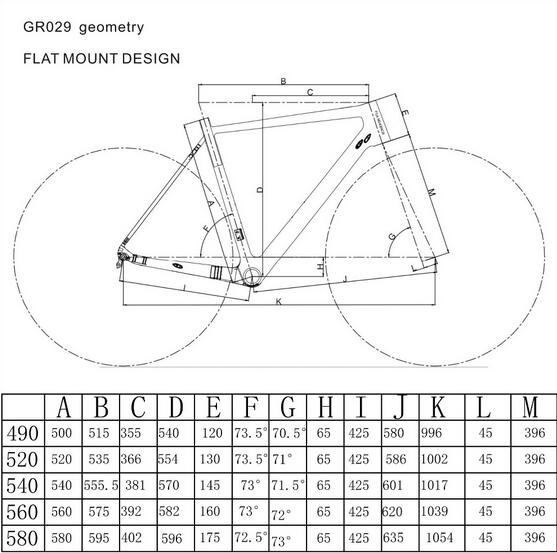

Geometry

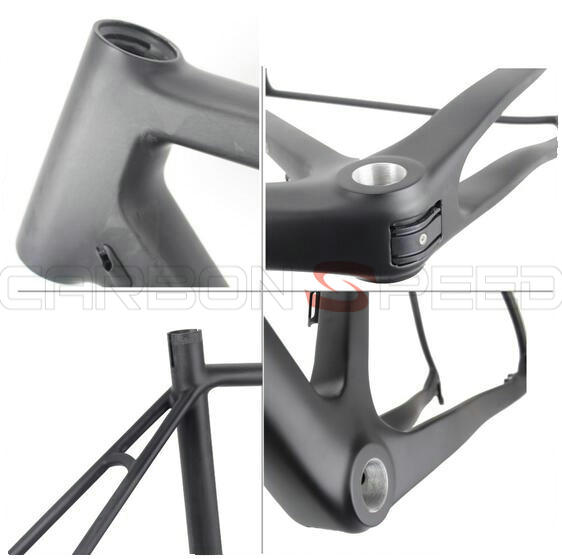

Detailed Pictures
