CSFW-FHR100C 100mm 26er fat bike carbon wheels

100mm 26er fat bike carbon wheels

Category:Fat Frame/Wheels/Rim --> Fat WheelsTime:2016-12-14Click:1126
Specifications

Size

26er

Type

Clincher&Tubeless&Hookless

Material

T700 toray carbon fiber

Weave

3K/UD/12K

Finish

Glossy/matt/painting

Rim Depth/Width

25.3/100mm

Hole

32/32H

Available Hub

Chosen 15*150mm/12*177mm

Chosen 15*150mm/12*197mm

Novatec 201/202 15*150mm/12*197mm

Available Spokes

Sapim Cx-ray/Race spokes

Nipples

Sapim SILS self-securing nipples

Picture Model

CSS-FHR100C

(Chosen hub , Race spoke)

2740g/pair

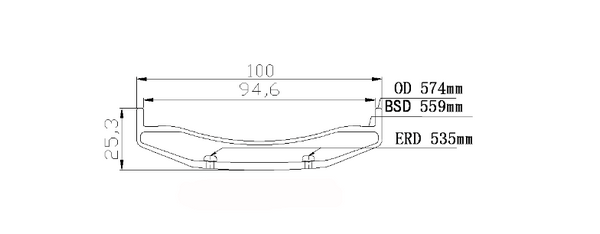

Geometry

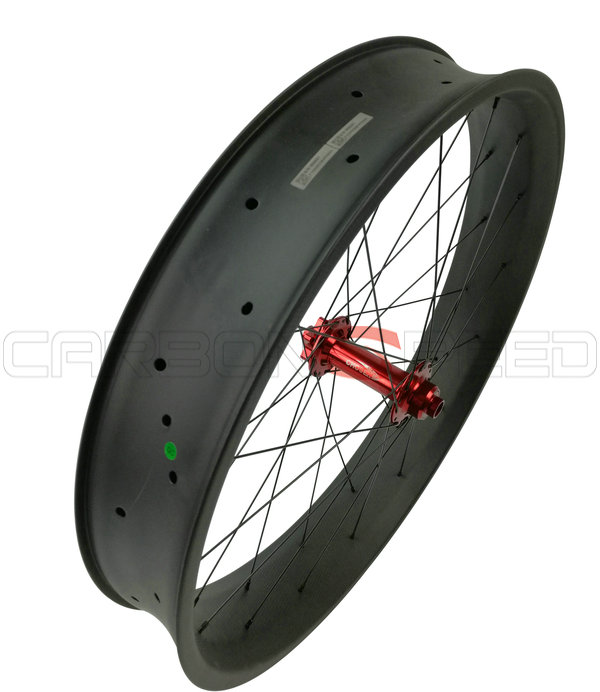

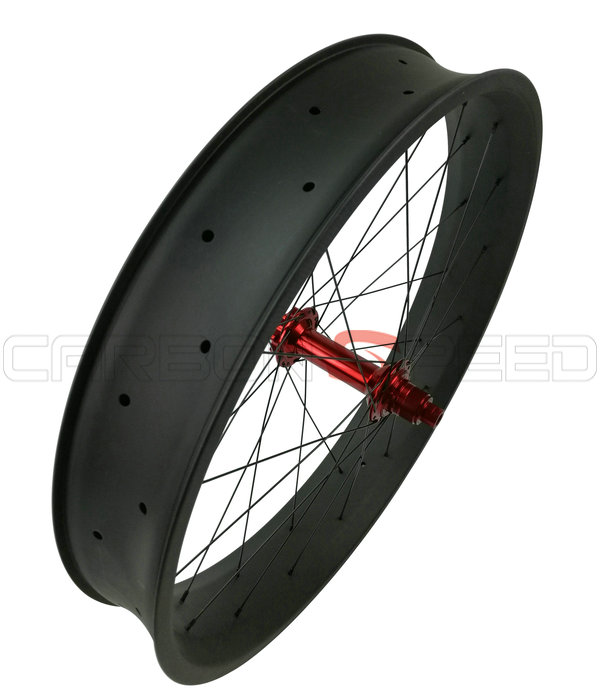

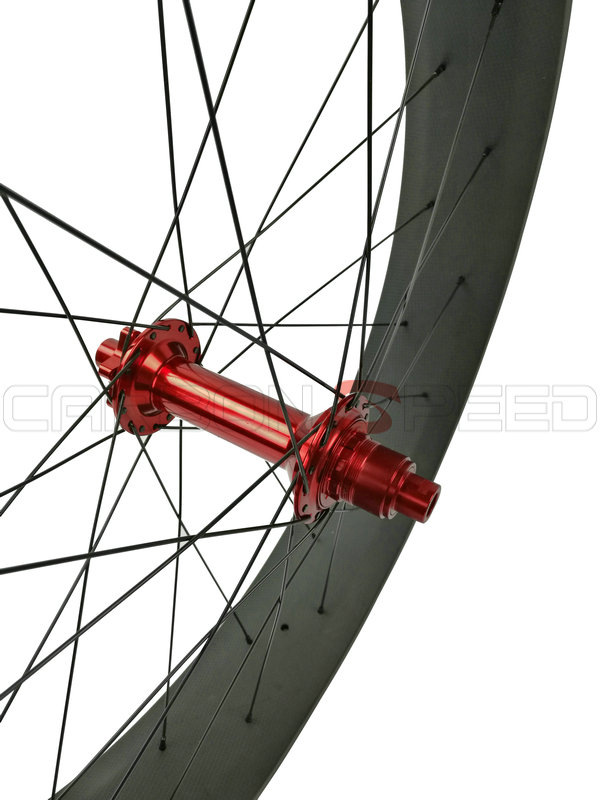

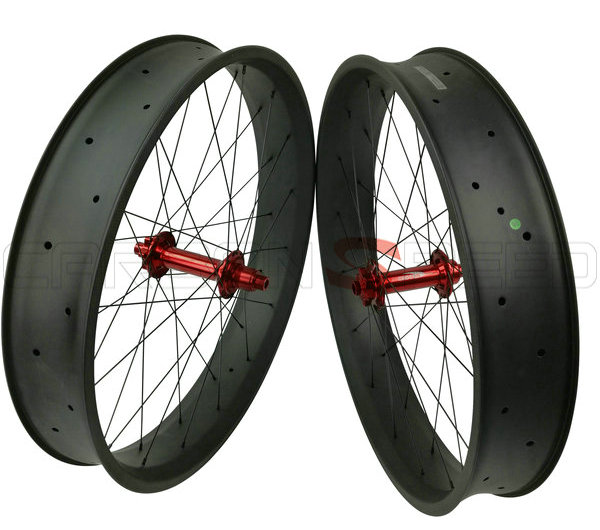

Detailed Pictures

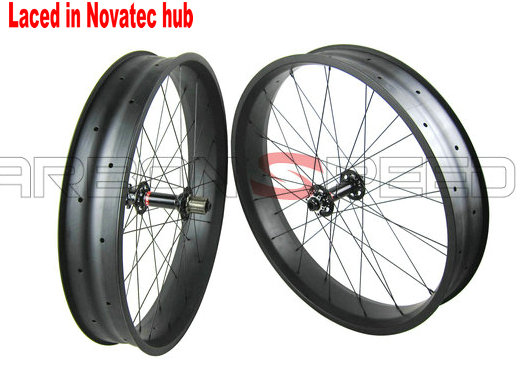

FHR100C Rim Laced in other hub:

NSS-FHR100C-2740g
